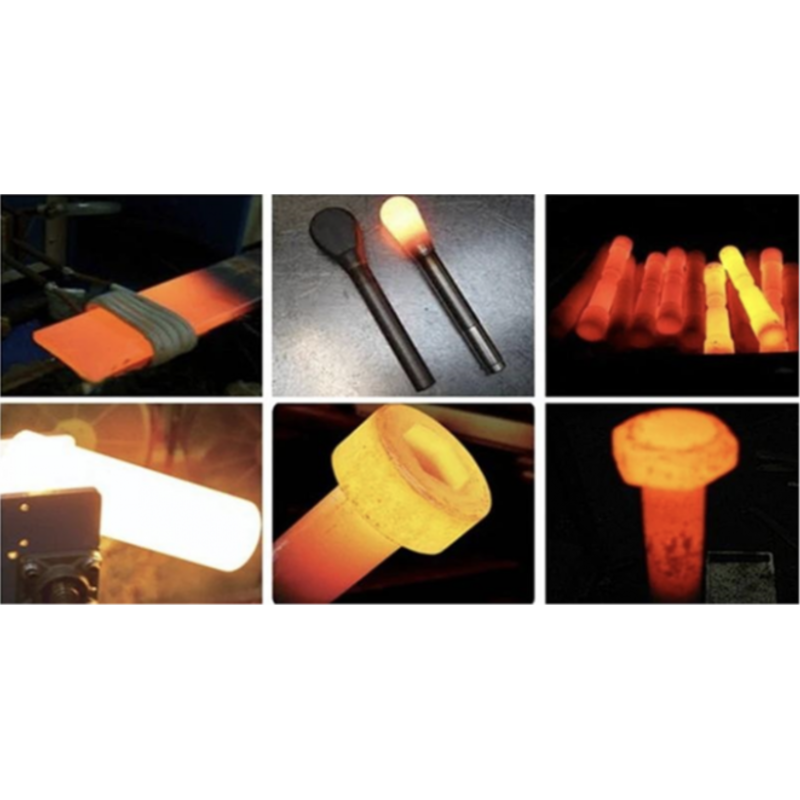

Induction forging applications
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack,
metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works
embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step
by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation:
pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains
pin, watch cases, railway rail pressure ring.
Induction Heating Equipment IF 100AB Parameter:
| Model |
IF-100AB (Three phase) |
| work power |
340V-430V |
| Maximum input current |
150A |
| Output power |
100KW |
| fluctuating frequency |
1-20khz |
| output current |
400-4000A |
| the flow rate of cooling water |
0.08-0.16Mpa 10L/Min |
| water temperature protection point |
50C |
| product size |
main : 820x600x1060mm |
| transformer : 870x430x750 mm |
| net weight |
main : 110gks |
| transformer : 79.5kgs |
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
Advantage of induction heater:
- Nearly 20 years experience, stable and goods performance
- CE,SGC,FCC,ROSH certificated
- Cooperated with GM,,HONDA and so on.
- Suitable for a large range, heating, quenching, forging, melting, soldering and so on.
- Less environment pollution
- High efficiency,high output&high reliability
- Small size &light weight
